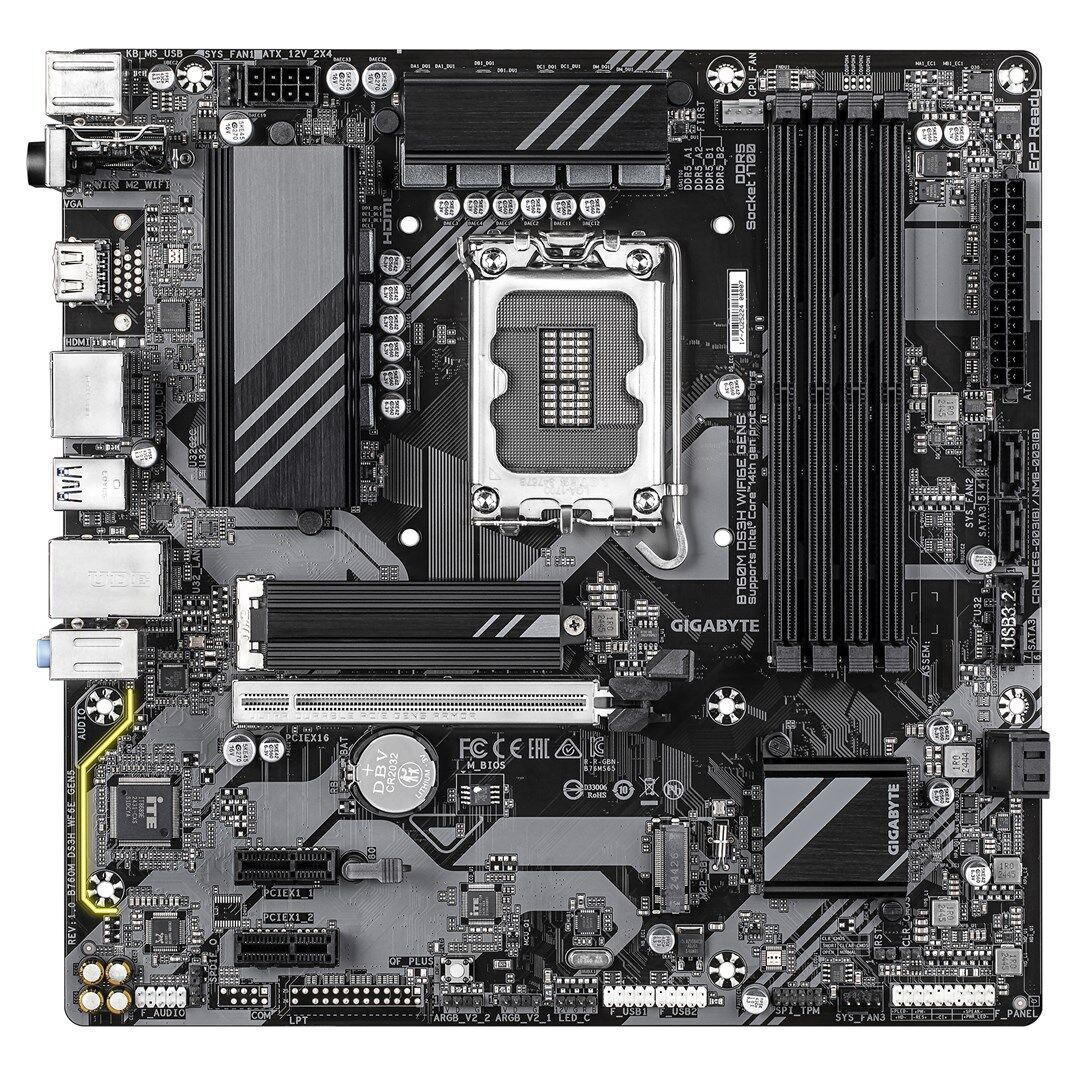

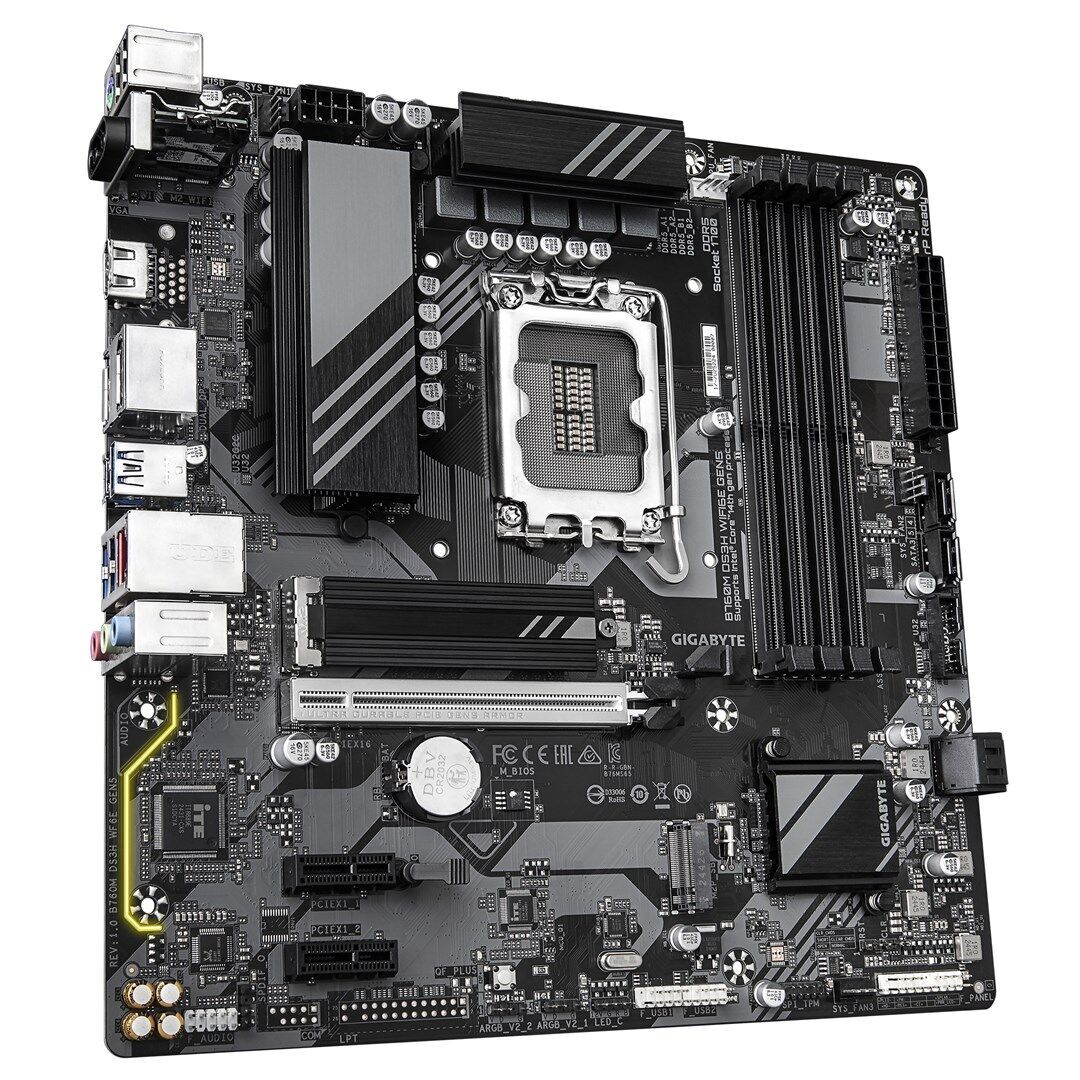

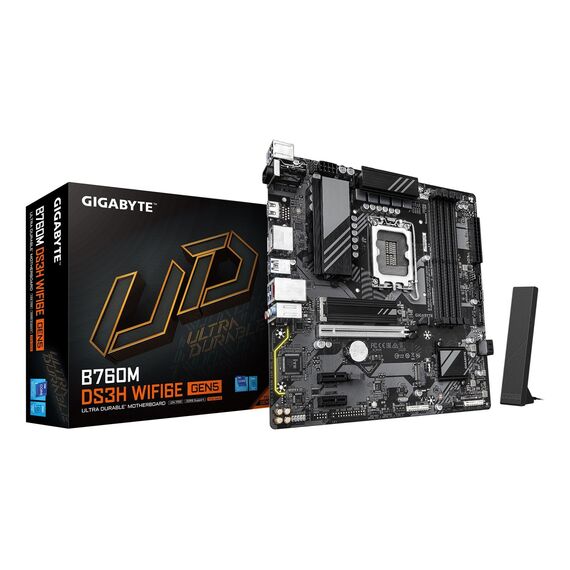

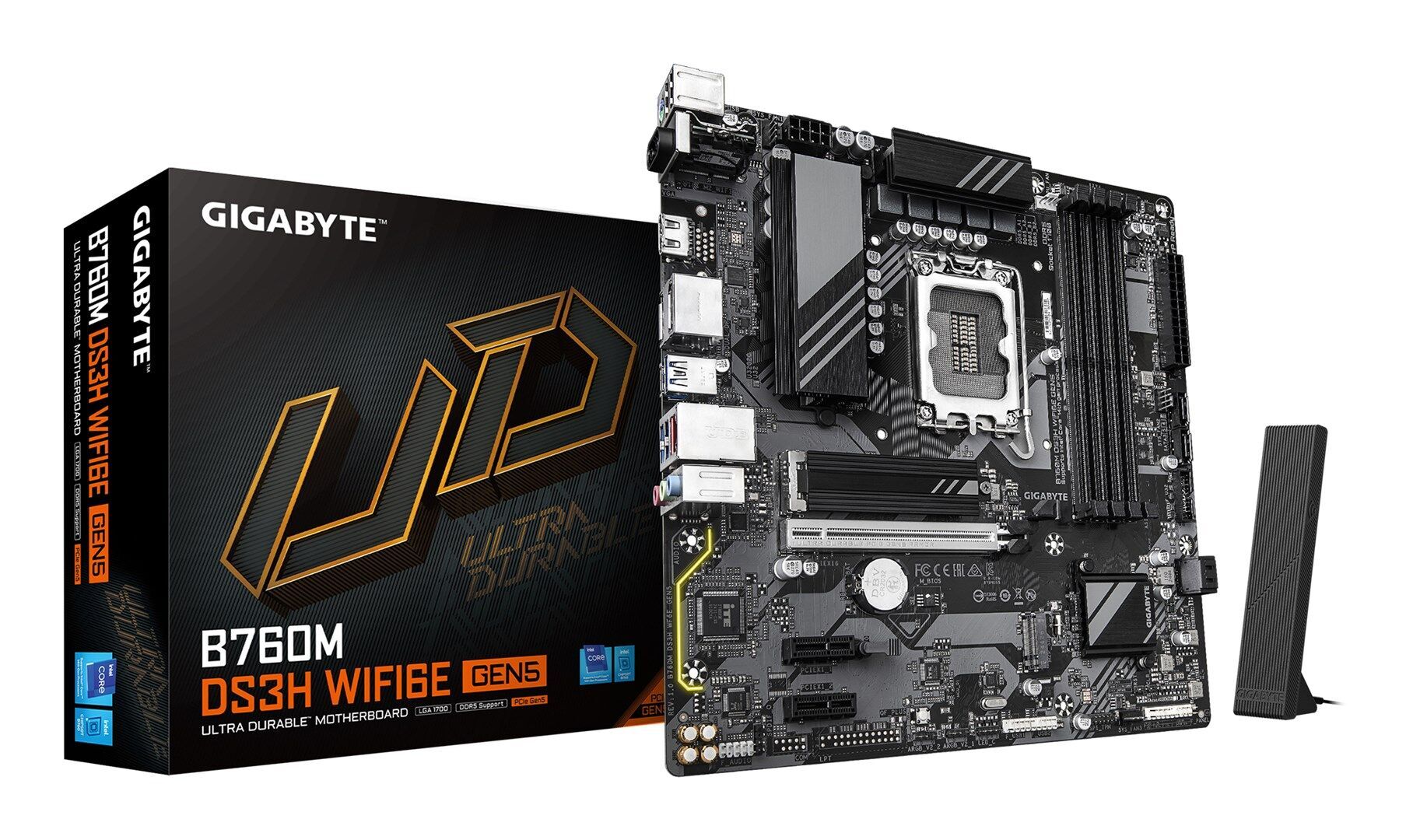

GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 - Motherboards - Laptops & PC Builds - Techbox
GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2
Write a review
146.65 €
Add to cart

GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2

Write a review
AC-813H40
+ −
Add to Wishlist Ask a question
Availabilities

In Stock
More details

7 - 10 Working Days
More details

Available Soon
More details

Pre-Order
More details

Out of Stock
More details
Shipping/Pick-up Methods
Payment Methods
Mastercard Visa IRIS Bank RF Klarna
Card payment, IRIS, RF- Payment, 3 Interest-free installments (via Klarna).
More details
Similar purchase proposals
Short description
  • Warranty period: 3 year(s)
  • Compatible processor series: Intel Core i3 14th Gen
  • Supported processor sockets: LGA 1700
  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Maximum resolution: 4096 x 2304 pixels
  • Parallel processing technology support: Not supported
  • HDCP: Yes
  • DirectX version: 12.0
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64
  • Cooling type: Passive
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • PC health monitoring: Voltage
  • Product colour: Dark brown
  • Audio chip: Realtek ALC897
  • Motherboard chipset: Intel B760 Express
  • Audio output channels: 7.1 channels
  • Number of memory slots: 4
  • Supported memory clock speed (max): 7600 MHz
  • Memory slots type: DIMM
  • Supported memory types: DDR5-SDRAM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Maximum internal memory per slot: 64 GB
  • Supported memory clock speeds: 5200
  • Unbuffered memory: Yes
  • Maximum internal memory: 256 GB
  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm
  • Wi-Fi standards: Wi-Fi 4 (802.11n)
  • Bluetooth version: 5.3
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Ethernet LAN: Yes
  • WLAN controller model: Intel Wi-Fi 6E AX210
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Bluetooth: Yes
  • LAN controller: Realtek RTL8125
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of SATA III connectors: 4
  • RGB LED pin header: Yes
  • Number of chassis fan connectors: 3
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Front panel connector: Yes
  • TPM connector: Yes
  • Front panel audio connector: Yes
  • 12V power connector: Yes
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • Number of CPU fan connectors: 1
  • Number of RGB LED pin headers: 3
  • S/PDIF out connector: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • Clear CMOS jumper: Yes
  • BIOS type: UEFI AMI
  • Package weight: 1.2 kg
  • Package width: 270 mm
  • Package height: 68 mm
  • Package depth: 268 mm
  • Bundled software: Norton® Internet Security (OEM version)
  • Batteries included: Yes
  • Antenna included: Yes
  • Screws included: Yes
  • RAID levels: 1
  • Number of storage drives supported: 3
  • RAID support: Yes
  • Number of HDDs supported: 4
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Supported storage drive types: HDD & SSD
  • PS/2 ports quantity: 1

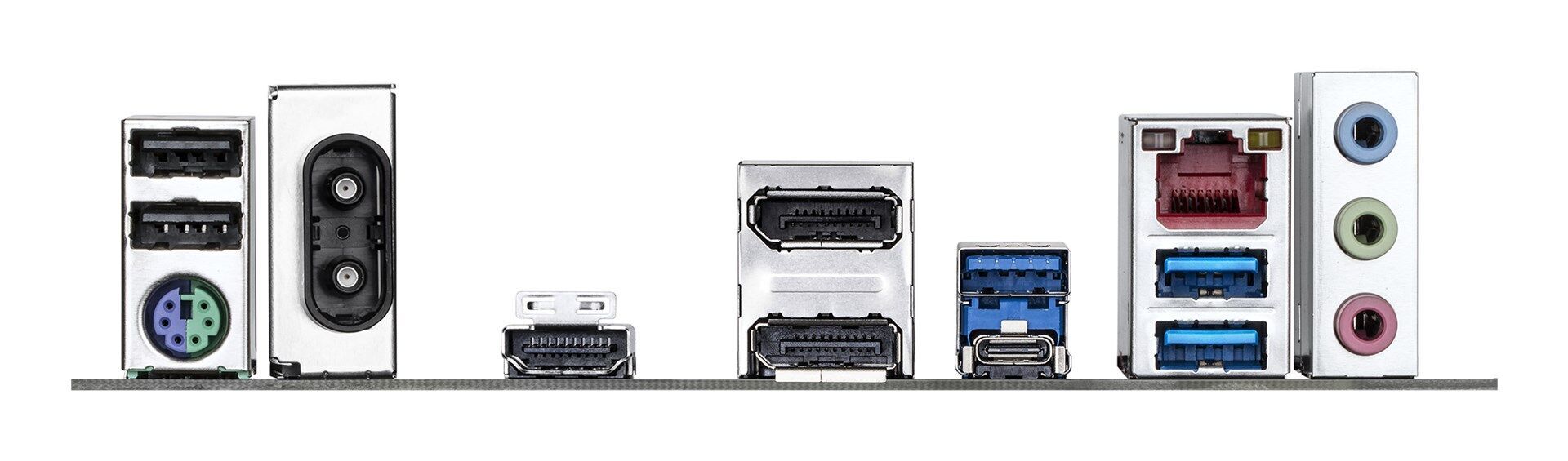

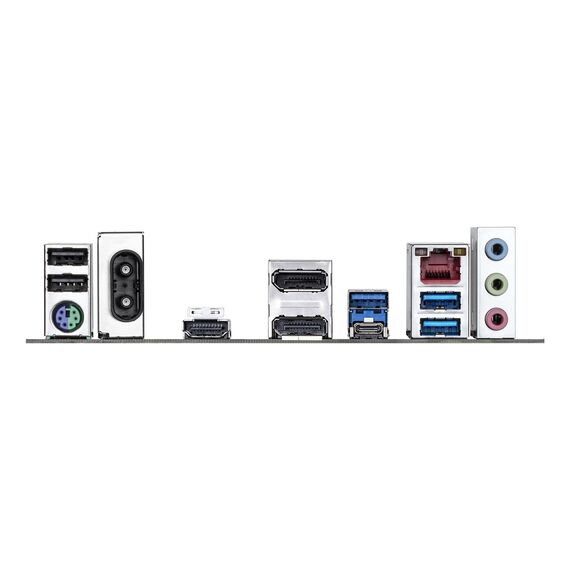

  • Ethernet LAN (RJ-45) ports: 1
  • DisplayPorts quantity: 2
  • HDMI version: 2.1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • HDMI ports quantity: 1
  • DisplayPort version: 1.2
  • Line-in: Yes
  • Headphone outputs: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Microphone in: Yes
  • WiFi-AP antenna jack: 2
  • Number of M.2 (M) slots: 2
  • PCI Express x1 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 highest PCI Express generation: 4.0
  • 1st M.2 largest key size: 2280
  • 2nd M.2 largest key size: 2280
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery weight: 3 g
  • Battery type: CR2032
  • Lithium weight per battery: 0.07 g
  • Weight: 1.1 kg
  • Products per shipping (inner) case: 1 pc(s)
  • Country of origin: China
Specifications
EAN
4719331872809
MPN
B760M DS3H WF6E GEN5
Manufacturer
Gigabyte
Warranty (Months)
36
Specification notes
Specifications are provided by the manufacturer and may change without notice. If a particular detail is critical to your choice, please also confirm it on the manufacturer's official product page
