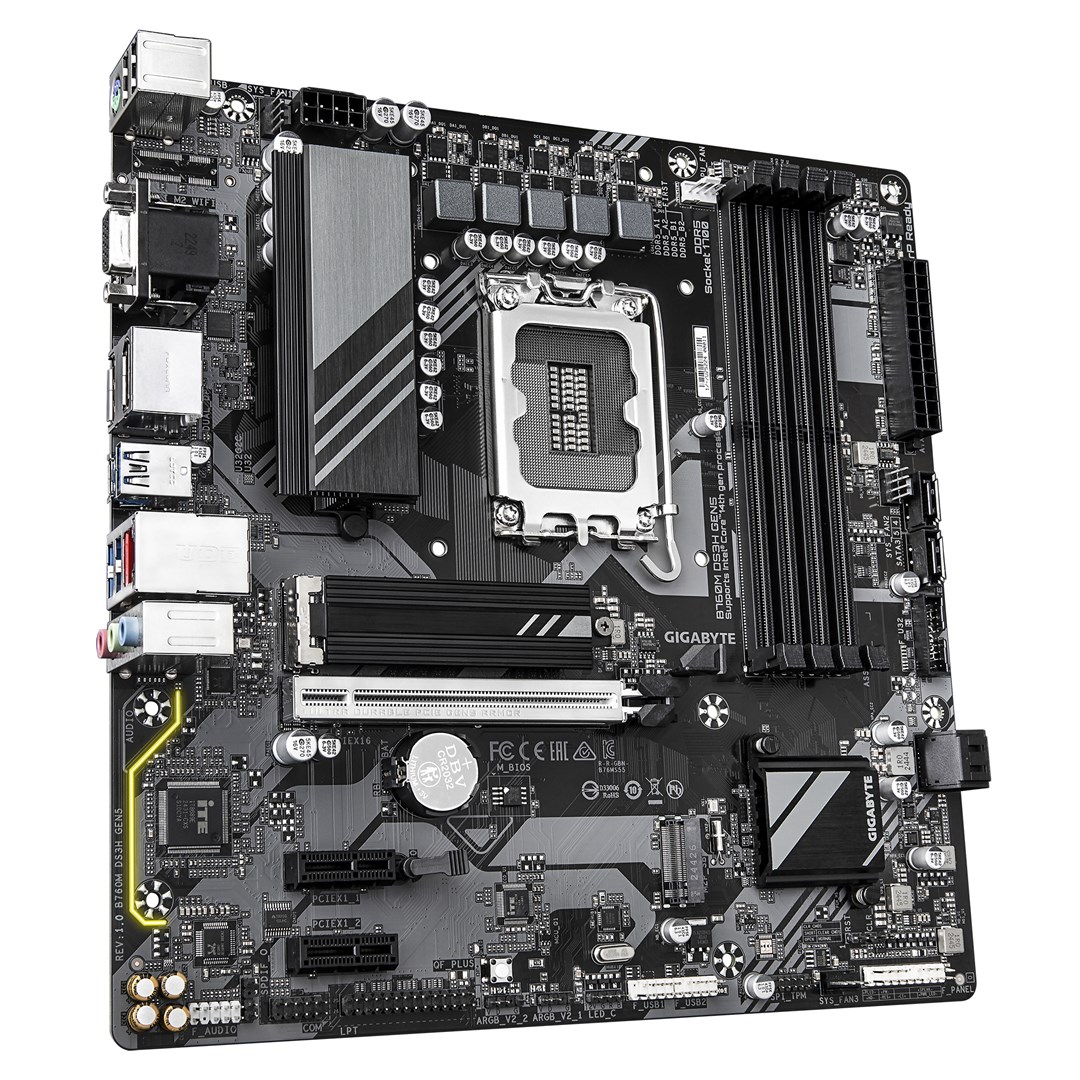

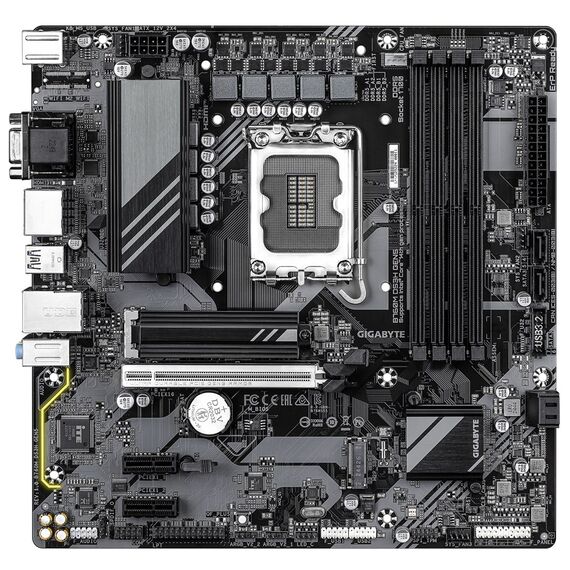

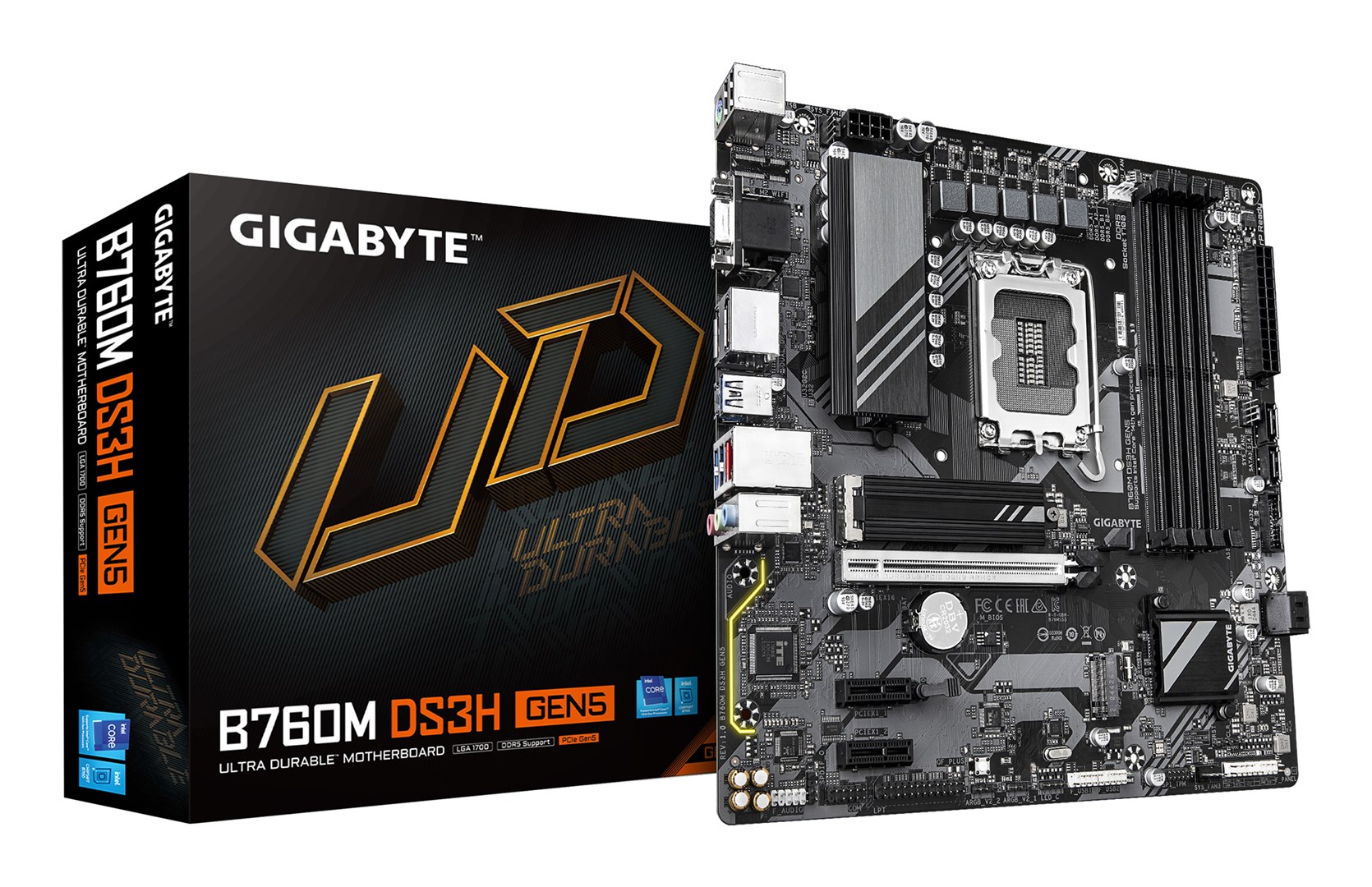

GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
115.57 €
GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
AC-393K81
Availabilities
In Stock
7 - 10 Working Days
Available Soon
Pre-Order
Out of Stock
Shipping/Pick-up Methods
Geniki - Greece
1-3 days pick-up from Gen. Taxudromiki
from 2.40€
Geniki - Greece
1-3 days pick-up from Gen. Taxudromiki
Free from 80€
ACS - Greece
1-3 days delivery at your address
from 2.90€
ACS - Greece
1-3 delivery at your address
Free from 80€
DHL Express - Cyprus & EU
1-2 days delivery at your address
from 10€
Collect from Techbox
Daily 9:00 - 18:00, Saturday 9:00 - 16:00
Free
Payment Methods
Card payment, IRIS, RF- Payment, 3 Interest-free installments (via Klarna).
Similar purchase proposals
- Supported processor sockets: LGA 1700
- Processor manufacturer: Intel
- Compatible processor series: Intel Core i7 13th Gen
- Processor socket: LGA 1700
- Maximum resolution: 4096 x 2304 pixels
- Parallel processing technology support: Not supported
- HDCP: Yes
- Audio output channels: 7.1 channels
- Cooling type: Passive
- Motherboard chipset: Intel B760 Express
- Power source type: ATX
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- PC health monitoring: Temperature
- Windows operating systems supported: Windows 11 x64
- Supported memory clock speeds: 5200
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Memory slots type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory channels: Dual-channel
- Number of memory slots: 4
- Supported memory clock speed (max): 5600 MHz
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory per slot: 64 GB
- Depth: 174 mm
- Width: 244 mm
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- USB 2.0 connectors: 2
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- Serial port headers: 1
- CPU fan connector: Yes
- Parallel connector: Yes
- Number of chassis fan connectors: 3
- ATX Power connector (24-pin): Yes
- Number of EPS power connectors (8-pin): 1
- Number of RGB LED pin headers: 3
- 12V power connector: Yes
- TPM connector: Yes
- Front panel connector: Yes
- RGB LED pin header: Yes
- Number of CPU fan connectors: 1
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID levels: 10
- RAID support: Yes
- Number of storage drives supported: 6
- Number of HDDs supported: 4
- USB 2.0 ports quantity: 2
- DisplayPort version: 1.2
- Ethernet LAN (RJ-45) ports: 1
- DisplayPorts quantity: 2
- HDMI version: 2.1
- Headphone outputs: 1
- Microphone in: Yes
- Line-in: Yes
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- 1st M.2 highest PCI Express generation: 4.0
- 1st M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- PCI Express x16 (Gen 5.x) slots: 1
Manufacturer
Gigabyte
